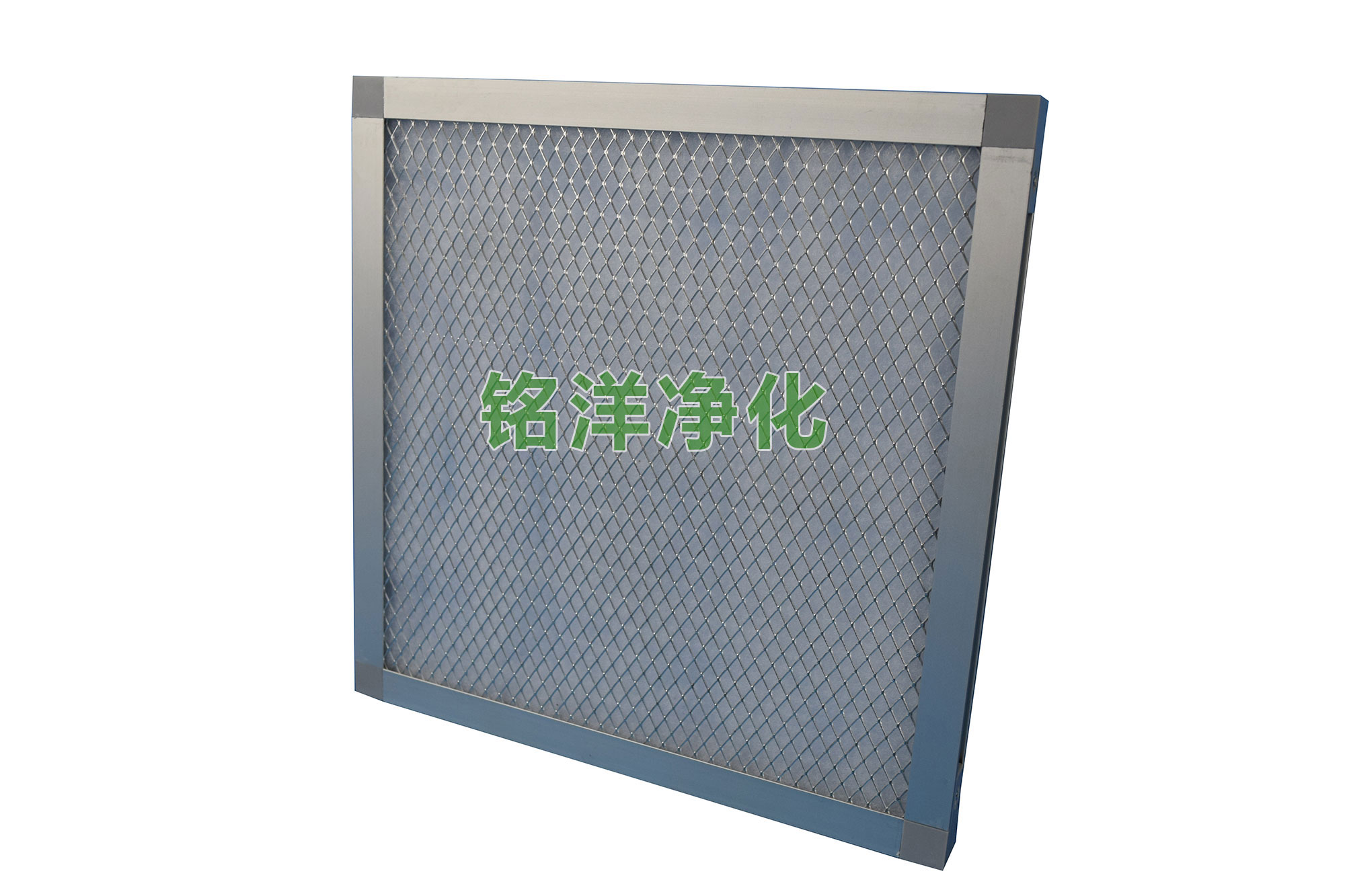

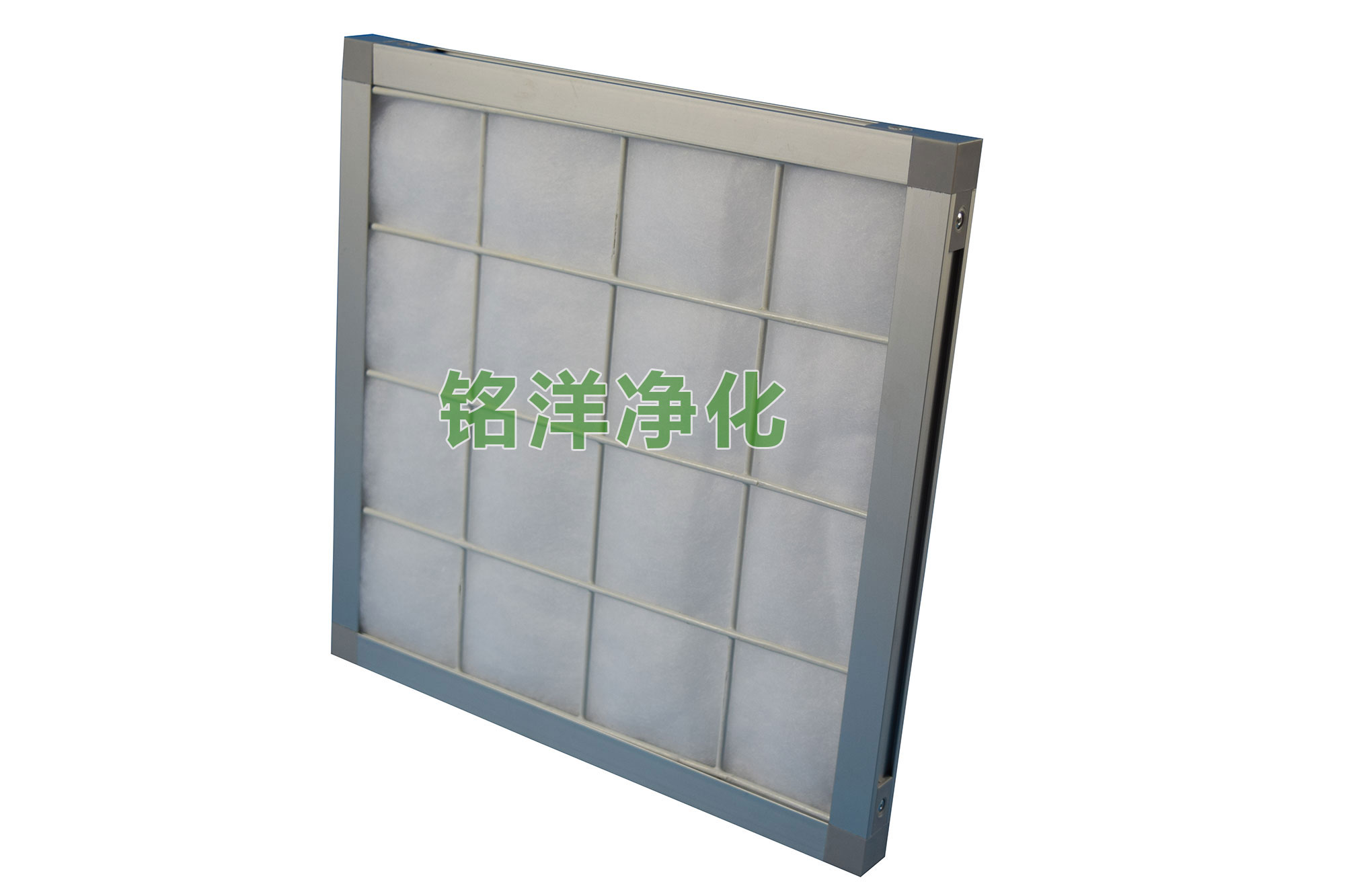

初效板式空气过滤器,由初效无纺布作滤料,与金属外框和金属网组合而成.具有清洗、更换滤料方便等优点。可有利于净化≥5UM的尘粒。广泛用于各种空调设备的一般过滤。
|

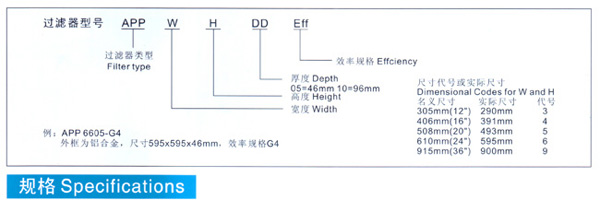

型号 |
规格 |
外形尺寸 |
过滤面积 |
额定风量 |
初阻力，Resistance与额定风量相比Pa,Via rated airflow
|
|||||
| 优先选用规格 | ||||||||||
| APP 6605-G3 | G3 | 595×595×46 | 0.6 | 3600 | 65 | 85 | ||||
| APP 3605-G3 | G3 | 290×595×46 | 0.3 | 1800 | 65 | 85 | ||||
| APP 6610-G3 | G3 | 595×595×96 | 1.37 | 3600 | 30 | 55 | 75 | |||
| APP 3610-G3 | G3 | 290×595×96 | 0.63 | 1800 | 30 | 55 | 75 | |||
| APP 6605-G4 | G4 | 595×595×46 | 0.6 | 3600 | 70 | 110 | ||||
| APP 3605-G4 | G4 | 290×595×46 | 0.3 | 1800 | 70 | 110 | ||||
| APP 6610-G4 | G4 | 595×595×96 | 1.37 | 3600 | 45 | 75 | 95 | |||
| APP 3610-G4 | G4 | 290×595×96 | 0.63 | 1800 | 45 | 75 | 95 | |||
| 其它规格 | ||||||||||
| APP 14×24×2-G4 | G4 | 341×595×46 | 0.35 | 2100 | 70 | 110 | ||||
| APP 4605-G4 | G4 | 391×595×46 | 0.40 | 2400 | 70 | 110 | ||||
| APP 18×24×2-G4 | G4 | 442×595×46 | 0.45 | 2700 | 70 | 110 | ||||
| APP 5605-G4 | G4 | 493×595×46 | 0.50 | 3000 | 70 | 110 | ||||
| APP 22×24×2-G4 | G4 | 544×595×46 | 0.55 | 3300 | 70 | 110 | ||||
| APP 30×24×2-G4 | G4 | 747×595×46 | 0.75 | 4500 | 70 | 110 | ||||
| APP 5505-G4 | G4 | 493×493×46 | 0.42 | 2500 | 70 | 110 | ||||
| APP 25×25×2-G4 | G4 | 620×620×46 | 0.68 | 3900 | 70 | 110 | ||||
| APP 20×25×2-G4 | G4 | 493×620×46 | 0.52 | 3100 | 70 | 110 | ||||
| APP 5610-G4 | G4 | 493×595×96 | 1.09 | 3000 | 45 | 75 | 95 | |||
| APP 9610-G4 | G4 | 900×595×96 | 1.97 | 5400 | 45 | 75 | 95 | |||
| APP 25×25×4-G4 | G4 | 620×620×96 | 1.48 | 3900 | 45 | 75 | 95 | |||
| APP 20×25×4-G4 | G4 | 493×620×96 | 1.14 | 3100 | 45 | 75 | 95 | |||
